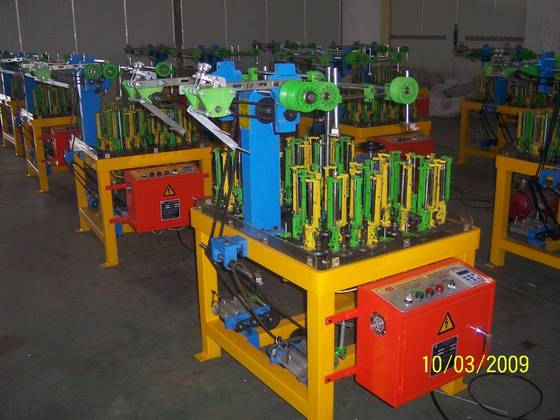

High Speed Drawstring Braiding Machine

JC Series of High Speed Rope/Belt Braiding Machine Model No. JC 4/16 JC 2/24 JC 2/40 JC 1/48 Heads 4 2 2 1 Numble of Spindle 16 24 40 48 Uses it is applied to producing a variety of spandex and non-spandex ropes and belts like cordages,strings,drawstrings,galloons,shoelaces, decorative and tensile ropes and belts,etc Max Diameter of Fabric different according to different spindles Capacity according to the raw materials,density of fabric and the size of gears 60-120m/hour/head for non-spandex fabric 30-60m/hour/head for spandex fabric Max. Rotate Speed (r/min) 360 320 300 300 Motor Power(KW) 0.75 0.75 1.1 0.75 Input Voltage(V) 220V，380V 220V，380V 220V，380V 220V，380V Machine Size(m)(L*W*H) 1.25*1.2*1.45 1.4*1.1*1.45 1.7*1.2*1.5 1.35*1.25*1.52 Bobbin Size(mm)(D*H) 48*140 48*140 48*140 48*140 Machine Weight 600KG Detailed Product Description High speed braiding machine is an equipment with high exactitude,high efficiency,low wastage and low noises,which absorbs foreign various advanced technique and combines with the present technical level in our country. It is applied to producing a variety of rope ribbons,shoestrings,flex,decorative ribbons and tensile. Adopt the advanced way of frequency conversion regulation and control,apt to control rotational speed,and in the braiding spindle qualify for the next round of competitions some office device hang industry of entering etc.Replace the punching type operation with porcelain eyes(alumina),operate simple and easily when changing the line.The applicable raw materials are also very wide.It is difficute to break when weaving,and not to fray the raw materials surface,after weaving,there is higher quality naturally,if there are products of warp-heart,can use material shelf automatically,nomatter what size is the warp-heart can becorrect deliveried dosage.When yun out of the warp-heart or break the line,the machine will stop turning round automatically.So under the unattended situation,that is also very comfortable for the machine running,in order to increase the output and lower costs. The applicable raw materials are very wide,it is suitable for wool,chemical fiber,PP yarn,wire,etc.It is applied to producing a variety of columned belts,flat belts,curtain ribbons,silk ribbons,decorative ribbons and the other spandex and non-spandex ribbons.
